Front & Rear Parking Assist

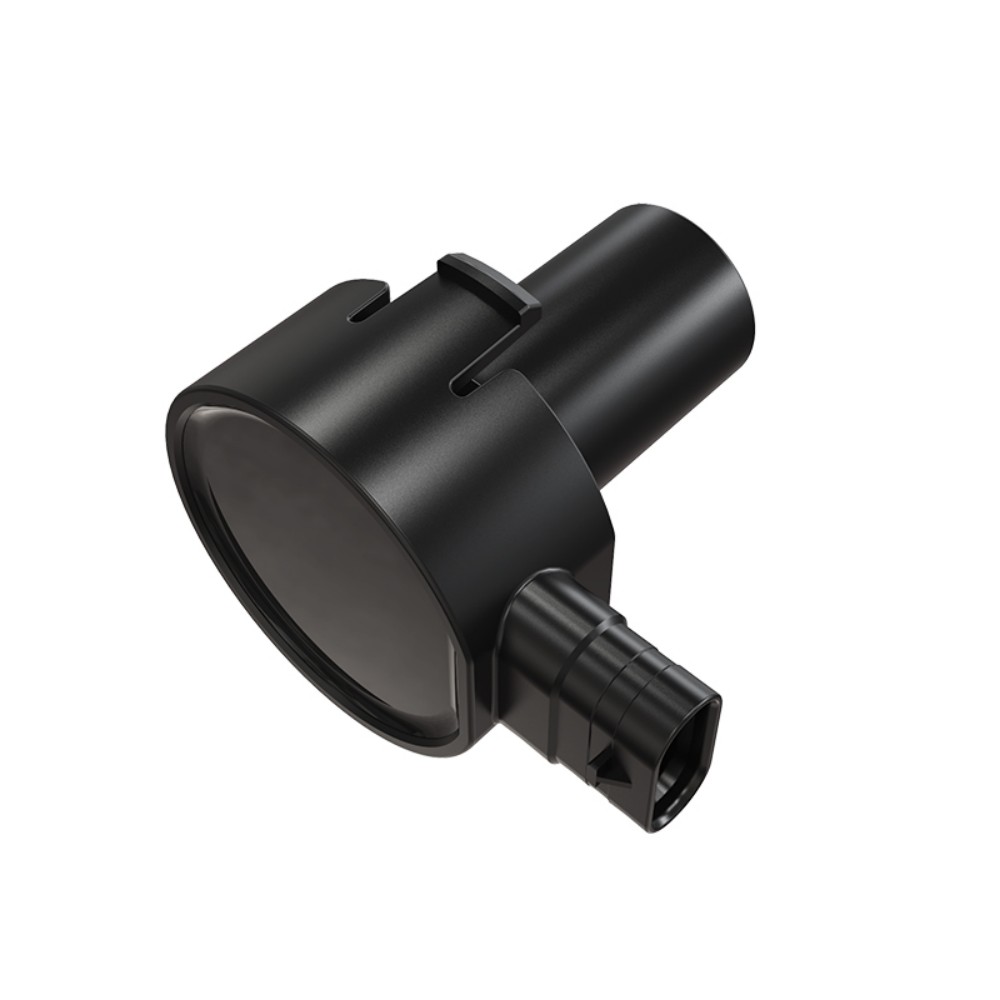

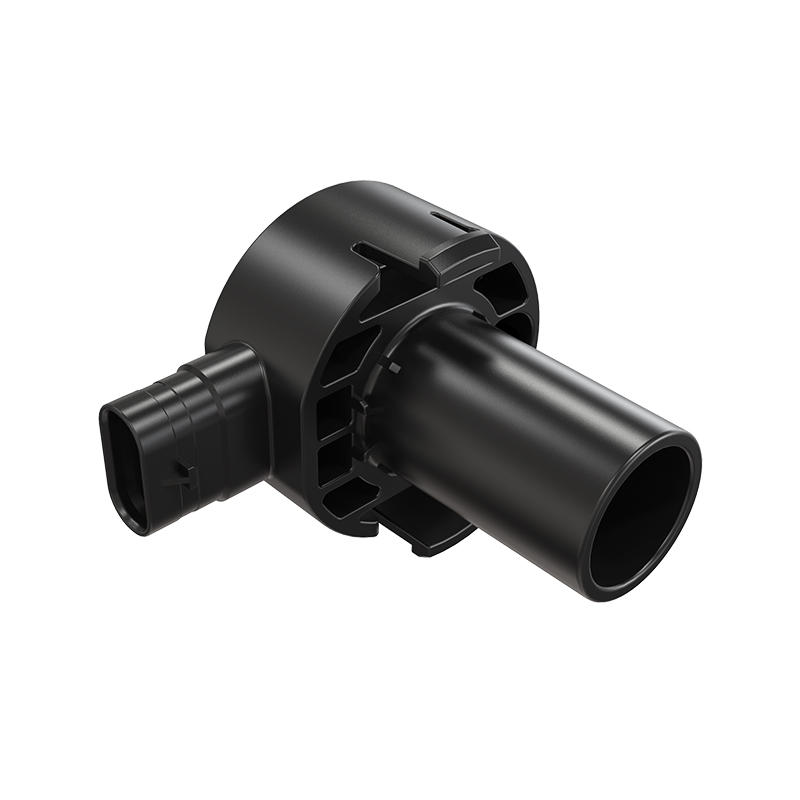

Ultrasonic Load-carrying Detection System

Remotely transmit data to load-carrying system by T-box , such as truck load weight, speed, location, etc.
Help operators to monitor the truck load status in real time, which reduce operational losses and traffic safety
Small distance ultrasonic high-precision detection, achieve Detect distance resolution ≤ 1mm
With waterproof, long lifetime, and can be used in hard environments
Timely warning the driver to adjust the loading status when the truck is eccentric or overloaded

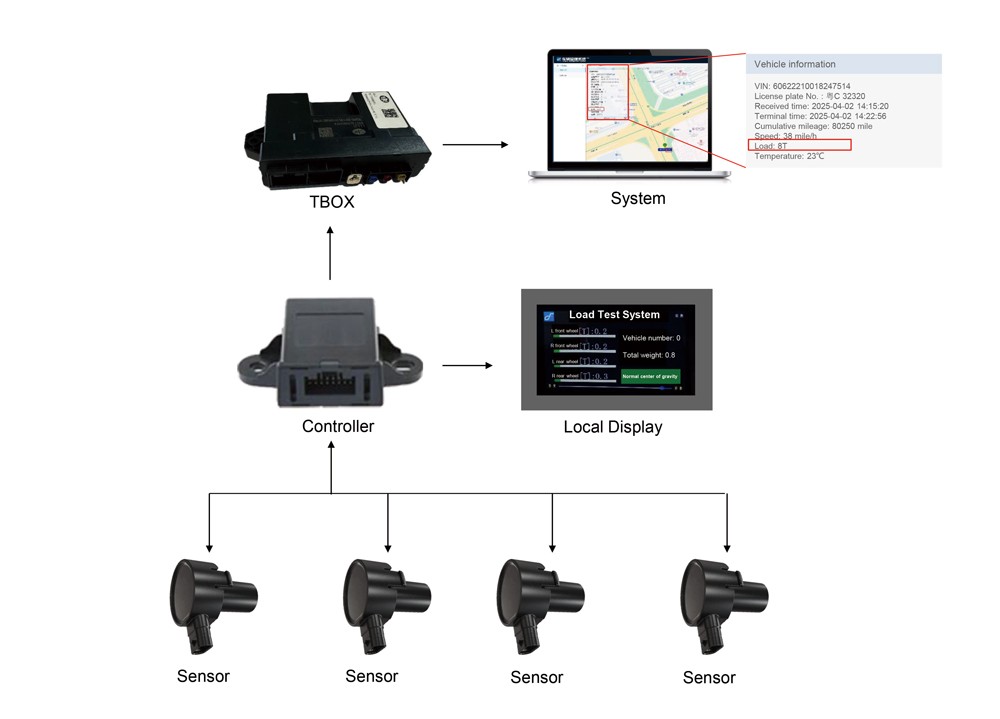

Solution Structure

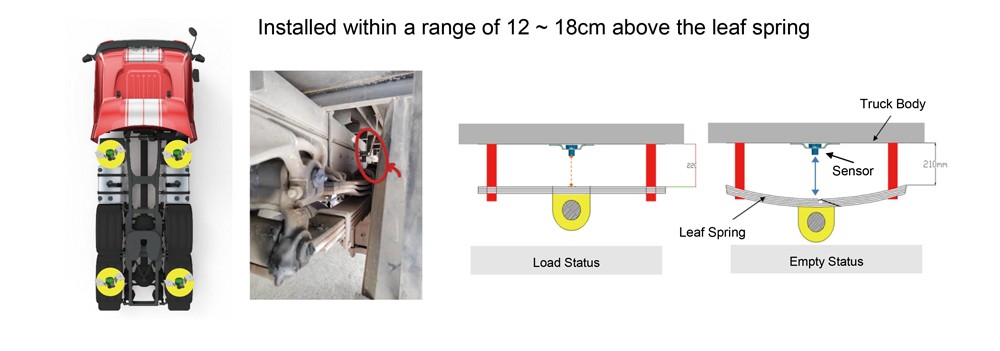

Installation

Ultrasonic-Load-carrying-Detection-system

Specification

Controller	Rated Voltage	DC 12/24V
	Working voltage range	DC 10V ～ 36V
	Working current	≤200 mA
	Working temp.	- 40℃ ～ +85℃
	Storage temp.	- 40℃ ～ +90℃
	IP level	IP50
	Communication	Two-channel UART
Sensor	Working voltage	DC 9V ～ DC 16V
	Working current	≤20 mA
	Working frequency	200Khz±10%
	Vibration after working	<0.5ms（Blind area < 8cm）
	Detect distance	≤50 cm
	Detect distance resolution	≤1mm
	Working temp.	- 40℃ ～ +85℃
	Storage temp.	- 40℃ ～ +90℃
	FOV	H/V:10±3°
	IP level	IP69
	Sensor configuration	4~8 sensor
