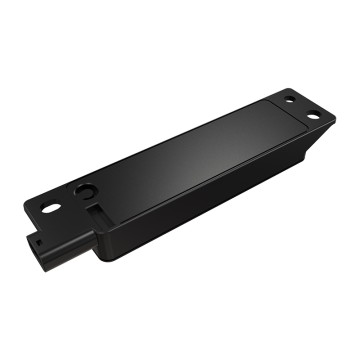

79GHz Door Open Warning System

79GHz Door Open Warning System


79GHz Door Open Warning System

● Detection range resolution <0.06m

● Detection range accuracy <1cm

● Max. blind area ≤ 0.1m

● 50ms target update rate

● With IP6K7+IP6K9 waterproof & dustproof

● Comply with ISO11898 and J1939 standard

● No need for calibration, easy to install

    Contact us

    Introduction

    77GHz microwave technology, detect the obstacles outside the door

    Automatic-Doorhh2
    Automatic-Door-Openerlqw

    Function

    ● Configure with 1~4 radar sensor

    ● Height of obstacles detectable

    ● Applied to automatic door

    Application

    Intelligent collision avoidance by obstacles of the curb, railing, metal, wall, people, car etc.

    Automatic-Car-Door-Opening-Systemfh8

    Specification

    Object update rate 50ms
    Number of antennas 4T4R
    Transmit power ≤20dBm
    Detection range  Min. 0.1m Max. ≥8.5m
    Angle H: -75°~+75° V: -60°~+60°
    Angle measurement accuracy 1°
    Angular resolution 14°
    Accuracy 1cm
    Resolution 0.067m
    Working current @12V ≤200mA
    Protection grade IP6K7+IP6K9
    Static operating current 35uA
    Working temp. -40℃~85℃
    Weight 38g

    Request A Quote

    Name*

    Tel

    Country*

    Message*

    FAQ

    Q: What is the 79GHz Door Open Warning System?

    +
    A: The 79GHz Door Open Warning System is an advanced safety system designed to detect nearby objects when a vehicle door is opened, helping to prevent collisions with pedestrians, cyclists, or other vehicles.

    Q: How accurate is the detection range of this system?

    +
    A: The system offers a detection range accuracy of less than 1cm, ensuring precise detection of nearby objects. This high level of accuracy enhances the system’s reliability in preventing accidents.

    Q: What is the detection range resolution?

    +
    A: The detection range resolution is less than 0.06 meters, which allows the system to detect even small objects in close proximity to the vehicle. This precise detection helps in identifying potential hazards when opening the door.

    Q: How large is the blind area of the system?

    +
    A: The system has a maximum blind area of ≤ 0.1 meters, which means it effectively minimizes areas where objects may not be detected. This ensures comprehensive coverage around the vehicle door.

    Q: How fast does the system update the detection target?

    +
    A: The system features a 50ms target update rate, allowing it to quickly detect and respond to changes in the environment. This rapid update rate is crucial for real-time warnings and ensures immediate response to potential hazards.
